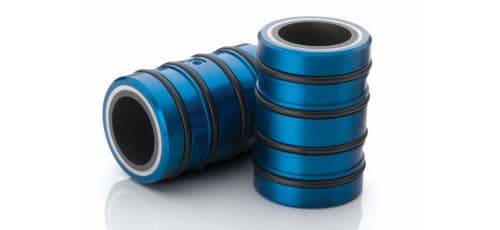

New Way porous air bearing — bushing (sleeve)
Catalog performance data (max load, radial stiffness, flow, mass, dimensions) for New Way porous-carbon air bearing bushings (radial sleeves), by bore diameter, at the vendor-fixed 60 psi supply and 4 µm air gap.
Literal lookup table (piecewise if/else chain over the diameter selector), not a physics model — same nature as newway-porous-bearing-flat-round.ts but a disjoint diameter range (13–75 mm) and a disjoint field set (adds OD/L for the cylindrical bushing geometry, has no separate "Height" field, uses "Radial stiffness"/"max Load" labeling and a 4 µm fixed air gap vs the flat-round page’s 5 µm fixed fly height) — confirmed as a genuinely different product/model despite the identical <title> text in the legacy source.
Methode & referenties
- New Way Air Bearings — porous-carbon bushing (radial sleeve) catalog performance data (www.newwayairbearings.com).
- All figures published at a fixed 60 psi (0.41 MPa) supply pressure and 4 µm radial air gap at max load — not adjustable, per the vendor data sheet and the original calculator’s own warning.
De berekening is een letterlijke overzetting van de originele client-side JavaScript van /calculators/newway_bushings.htm. Resultaten zijn geverifieerd gelijk aan het origineel via een geautomatiseerde golden-master-test. Geen enkele formule is opnieuw afgeleid of “verbeterd”.
