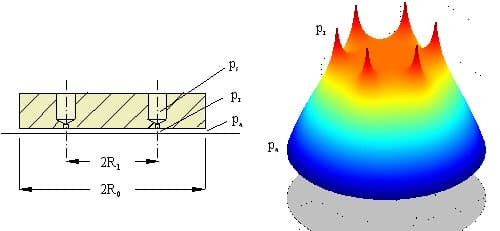

Aerostatic bearing — grouped inherent orifices
Design pressure ratio and load capacity for an aerostatic thrust bearing fed through grouped inherent orifices.
Draagvermogen, F150.8 N
Drukverhouding, pᵣ/pₛ0.68
One of the scarce-core gas-bearing calculators. This one carries no login lock and is general in its geometry.
Methode & referenties
- Aerostatic thrust bearing with grouped inherent (compensated) orifice restrictors.
- Load from the design pressure ratio and the bearing area.
De berekening is een letterlijke overzetting van de originele client-side JavaScript van /calculators/c12_4c.htm. Resultaten zijn geverifieerd gelijk aan het origineel via een geautomatiseerde golden-master-test. Geen enkele formule is opnieuw afgeleid of “verbeterd”.
